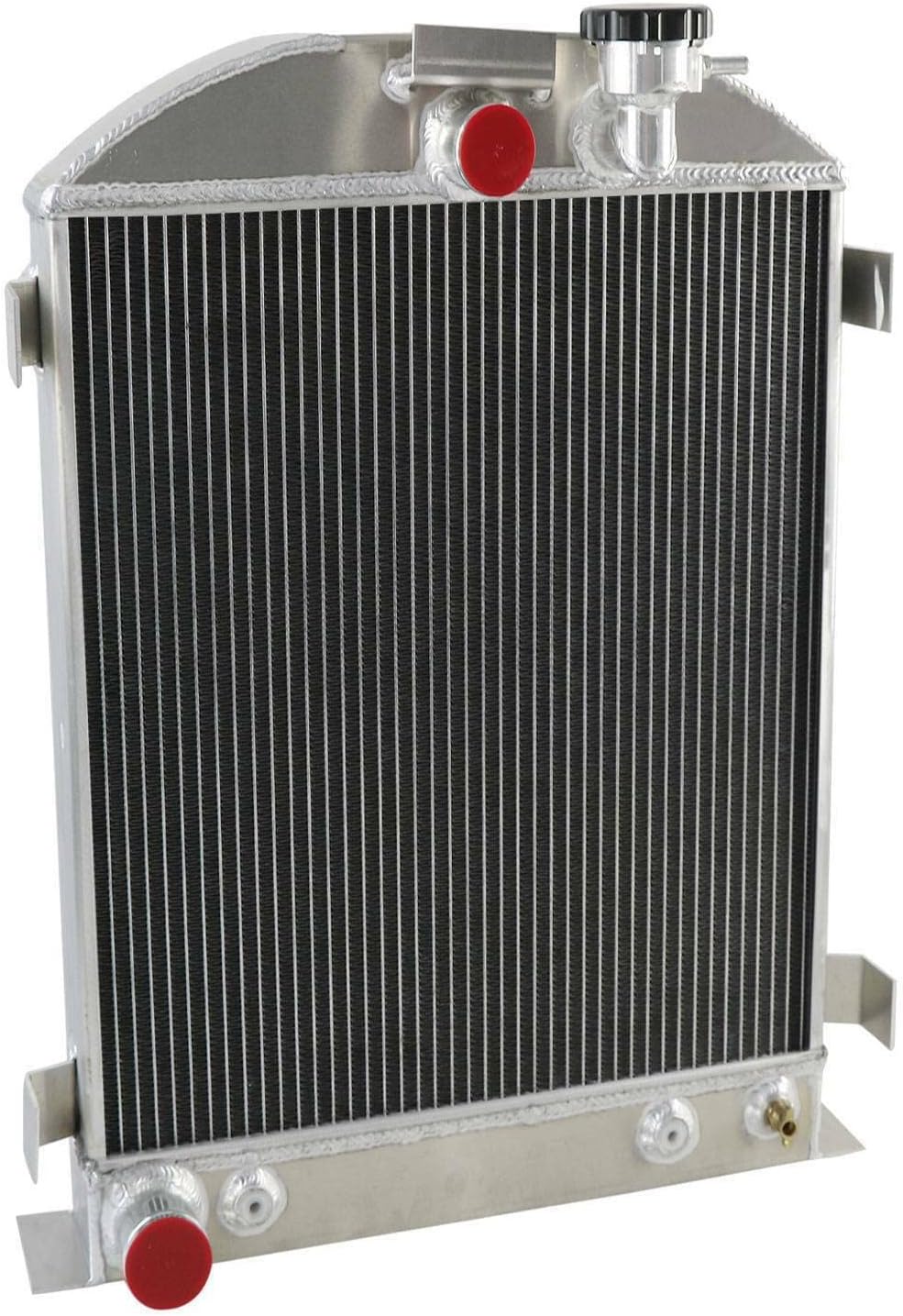

Aluminum Radiator for 1928 1929 1930 1931 Ford Model A Base 3.3L L4 GAS 3 Row Radiators Shroud 1x16" Fan Thermostat Relay Kit

FitmentFor 1928-1931 Ford Model A Base 3.3L L4 GASPackage Include:1 X 3-Row AA5052 Aluminum Radiator(Includes Radiator Cap)1 X AA5052 Aluminum Shroud1 X 16" Fans(Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 20.04"H x 17.24"W x 1.73"TOverall Size: 25.59"L x19.88"W x6.50"HInlet/Outlet: 1.50"/1.77"Transmission oilcooler: φ25*250*1/8NPT(T)Performance: Up to 30%~45% More CoolingRadiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine CompartmentMounting Style: Bolt-OnFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFans SizeMaximum Fan CFM: 2000±200Fan Diameter (in): 16.050 inchesThickness (in): 2.790 inchesNumber of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

• For 1928-1931 Ford Model A Base 3.3L L4 GAS, 1928 1929 1930 1931 28 29 30 31
• Core Size: 20.04"H x 17.24"W x 1.73"T; Overall Size: 25.59"L x19.88"W x6.50"H; Inlet/Outlet: 1.50"/1.77"; Transmission oilcooler: φ25*250*1/8NPT(T)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
