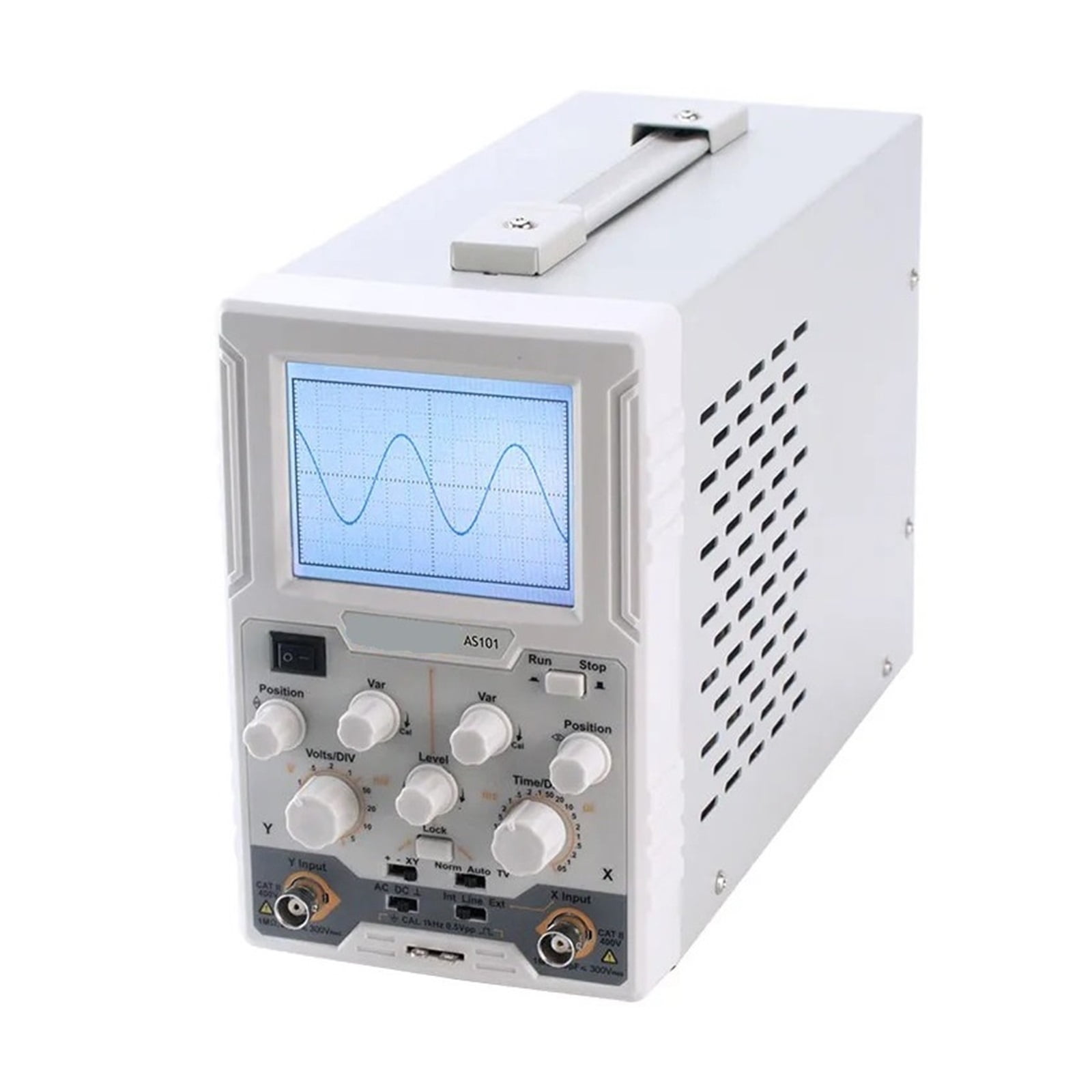

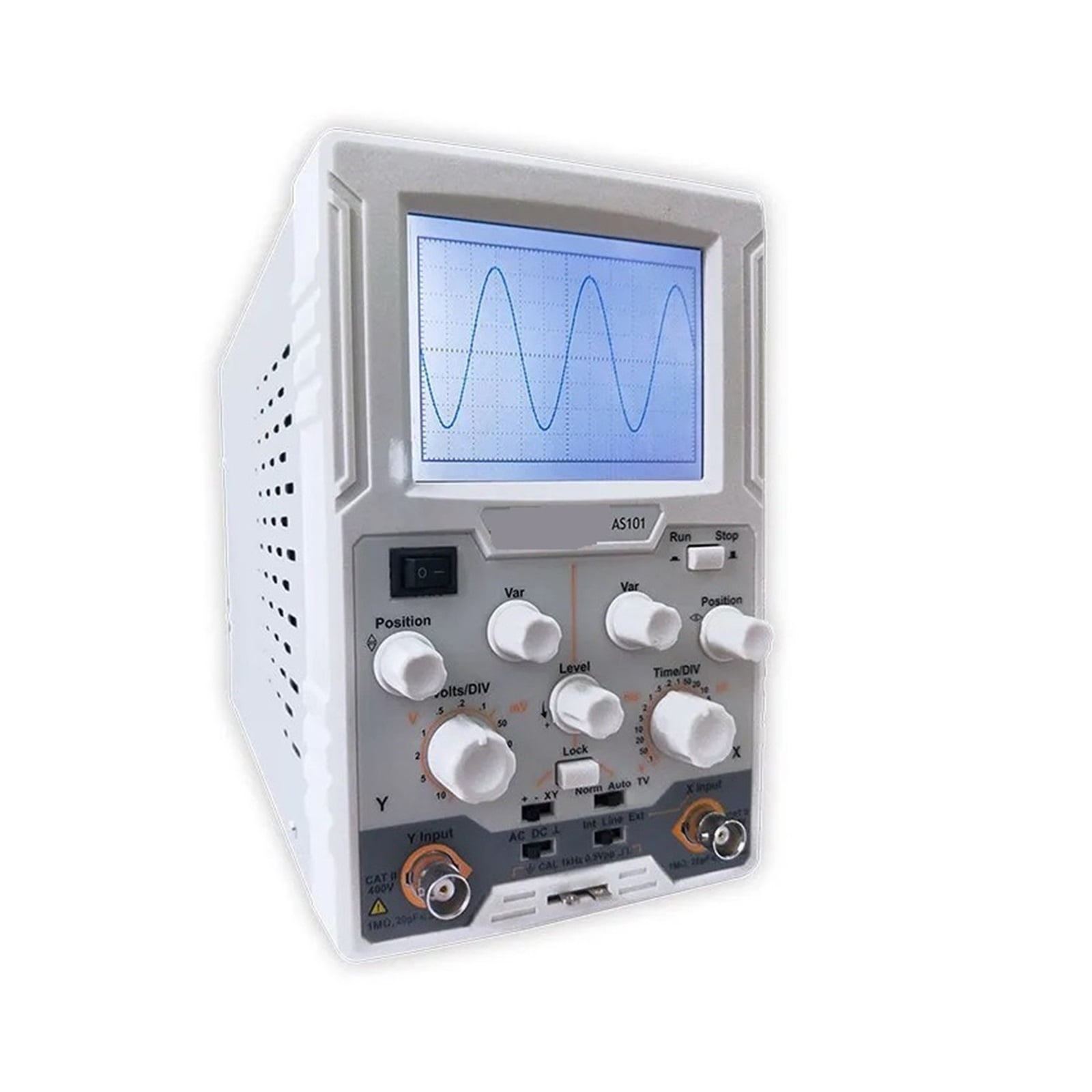

Channel Oscilloscope 10MHz 100MS/s 130,000wfms/sre Fresh Rate LCD Display Digital Smart Oscilloscope ,Professional Designed

<p>Display Digital Oscilloscope</p><p>+ 3.7" Colored LCD</p><p>+ Compact case</p><p></p><p>Specifications</p><p>Bandwidth:DC:0~10MHz,AC: 10 Hz~10MHz</p><p>Channel:1</p><p>Horizontal system</p><p>Sample Rate:100MS/s</p><p>Interpolation:(Sinx)/x</p><p>Scanning speed (S/DIV):0.05us/DIV ~ 0.1s/DIV,step by 1 2 - 5</p><p>relay time accuracy:±100 ppm</p><p>Trimming Ratio:2.5:1</p><p>Vertical system</p><p>Sensitivity:5 mV/DIV-10 V/DIV</p><p>Displacement:±10DIV</p><p>Rise time (at input, Typical): 30 ns</p><p>Trimming Ratio:2.5:1</p><p>Sensitivity:X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV</p><p>Bandwidth(-3dB):DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz</p><p></p><p>Trigger</p><p>Trigger level range:±4 DIV from the screen center</p><p>Trigger level Accuracy (typical):±0.3 DIV</p><p>Trigger Sources:Int, Line, Ext</p><p>Trigger Mode:Norm, AUTO, TV</p><p>Edge trigger:Rising, Falling</p><p>Sample Rate / Relay Time:±100ppm</p><p>Trigger lock:support</p><p>Ext. Trigger Input Impedance:1 M±2%, in parallel with 20 pF±5 pF</p><p>Ext. Trigger Max. </p><p>Trigger Output of the probe compensator</p><p>Output Voltage (Typical):Square, 0.5Vpp±2%</p><p>Frequency (Typical):Square wave of 1 kHz(±1%)</p><p>Display:3.7" Colored LCD (Liquid Crystal Display)</p><p>&lt;15W</p><p>Fuse:1A, T class, 250V</p><p>Low Frequency:10 Hz (at input, AC coupling, -3 dB)</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• + The simple control panel is similar to an analogue oscilloscope
• + Bandwidth : 10MHz(AS101); 20MHz (AS201)
• + Sample rate : 100MS/s
• + 1-Channel
• + 130,000 wfms/s waveform capture rate, easily capturing exceptional and low probability events
